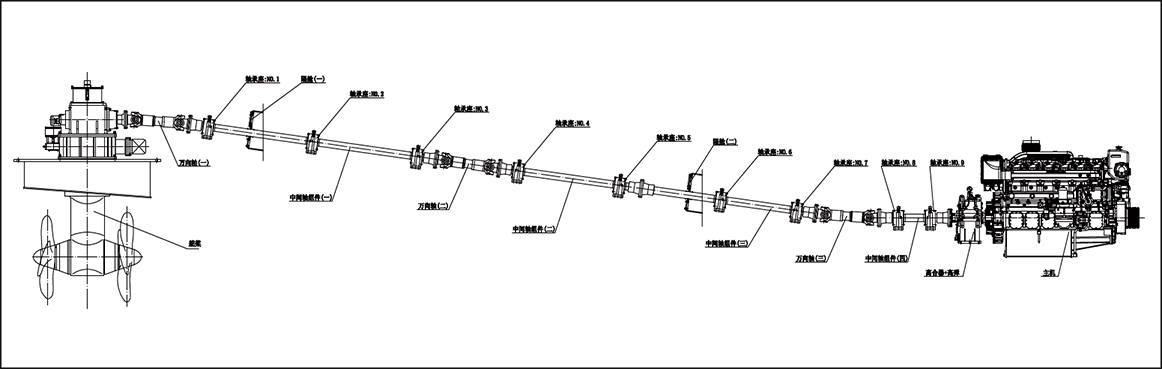

全回转对转桨舵桨布置图 Contra-rotating propeller azimuth thruster arrangement diagram
|

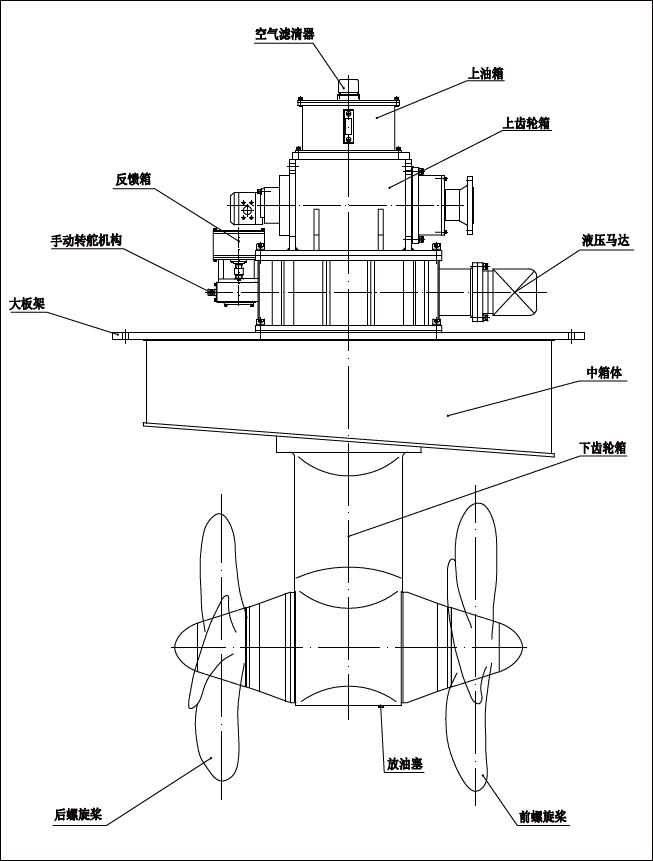

全回转对转桨舵桨外形图 Contra-rotating propeller azimuth thruster outline drawing |

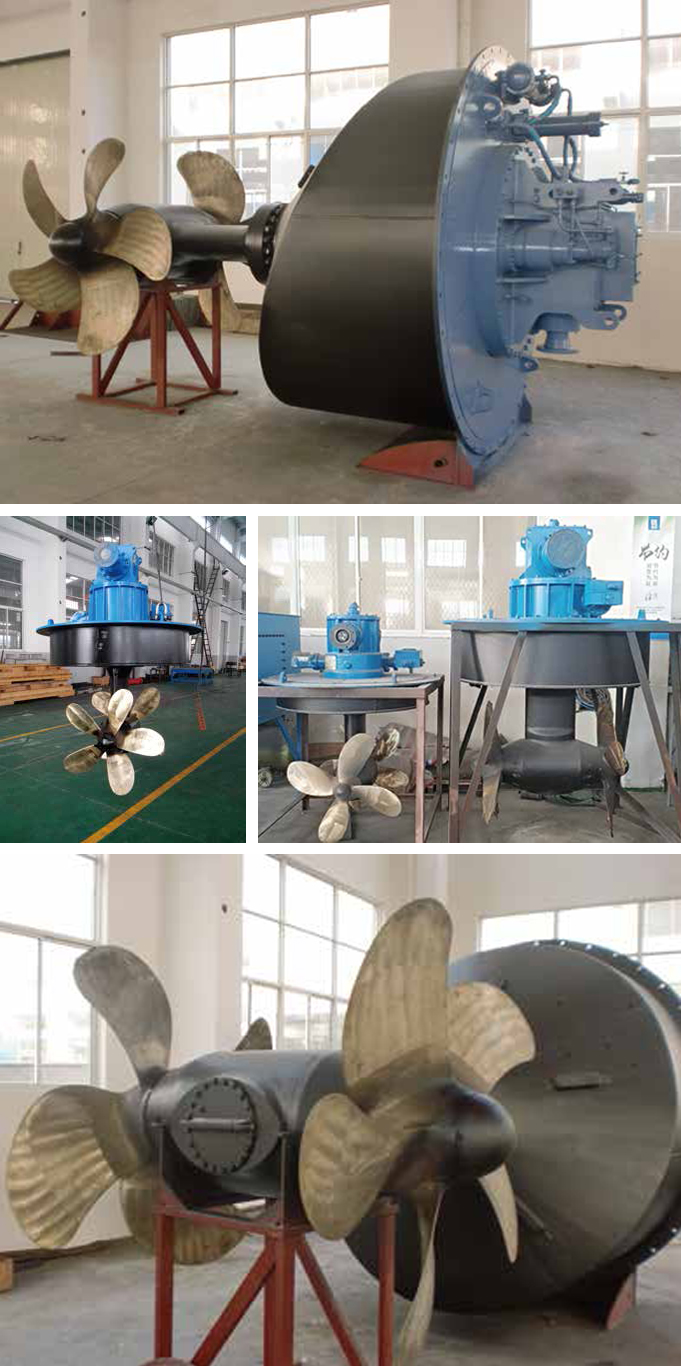

全回转对转舵浆是一种综合了对转螺 旋桨与舵机于一体的Z型推进装置 其水下部分可通过360度的自由旋转 进行转舵，形成全方位推力。该装置 融合了对转螺旋桨的结构优势与360 度舵机的机动灵活的特点，可有效缩 小旋转桨直径、提高推进效率、减小振 动和噪音。主要应用于运输船、浮油回 收船、环卫工程船等有特殊要求或特殊 限制的船舶。 |
|
型号 Type |
输入功率 Max.input power |
输入转速 Input speed rpm |
螺旋桨直径 Propeller diameter mm |
|
| 单位Unit(kW) | 单位Unit(HP) | |||
| RFRP-W-80/RFCRP-W-80 | 65 | 88 | 1500-2200 | 400-600 |
| RFRP-W-150/RFCRP-W-150 | 110 | 150 | 1500-2200 | 500-900 |
| RFRP-W-250/RFCRP-W-250 | 190 | 258 | 1200-2100 | 800-1100 |
| RFRP-W-400/RFCRP-W-400 | 294 | 405 | 1000-1800 | 900-1200 |
| RFRP-W-600/RFCRP-W-600 | 447 | 608 | 1000-1800 | 1000-1300 |
| RFRP-W-1000/RFCRP-W-1000 | 810 | 1102 | 1000-1800 | 1300-1750 |
| RFRP-W-1400/RFCRP-W-1400 | 1030 | 1400 | 750-1500 | 1400-1850 |
| RFRP-W-1600/RFCRP-W-1600 | 1200 | 1633 | 750-1500 | 1600-2100 |
| RFRP-W-1800/RFCRP-W-1800 | 1324 | 1800 | 750-1500 | 1800-2100 |
| RFRP-W-2000/RFCRP-W-2000 | 1471 | 2000 | 750-1500 | 1850-2200 |
| RFRP-W-2400/RFCRP-W-2400 | 1765 | 2400 | 750-1500 | 2100-2500 |
| RFRP-W-2700/RFCRP-W-2700 | 1986 | 2700 | 750-1500 | 2100-2600 |
| RFRP-W-3000/RFCRP-W-3000 | 2207 | 3000 | 750-1500 | 2200-2800 |
| RFRP-W-3500/RFCRP-W-3500 | 2574 | 3500 | 600-1000 | 2200-2800 |
| RFRP-W-3700/RFCRP-W-3700 | 2721 | 3700 | 600-1000 | 2400-3000 |
| RFRP-W-4000/RFCRP-W-4000 | 2942 | 4000 | 600-1000 | 2500-3200 |
| RFRP-W-4500/RFCRP-W-4500 | 3310 | 4500 | 600-1000 | 2700-3500 |
| RFRP-W-5000/RFCRP-W-5000 | 3678 | 5000 | 600-1000 | 3000-3800 |
| 注: 螺旋桨直径需根据主机(或电机等)功率、船体参数等进行设计，最终尺寸以实际为准。 | ||||
| RFRP-W-XXXX(“X”代表数字)代表井式安装单浆舵浆，RFCRP-W-XXXX(“X”代表数字)代表并式安装对转桨舵桨。 | ||||
